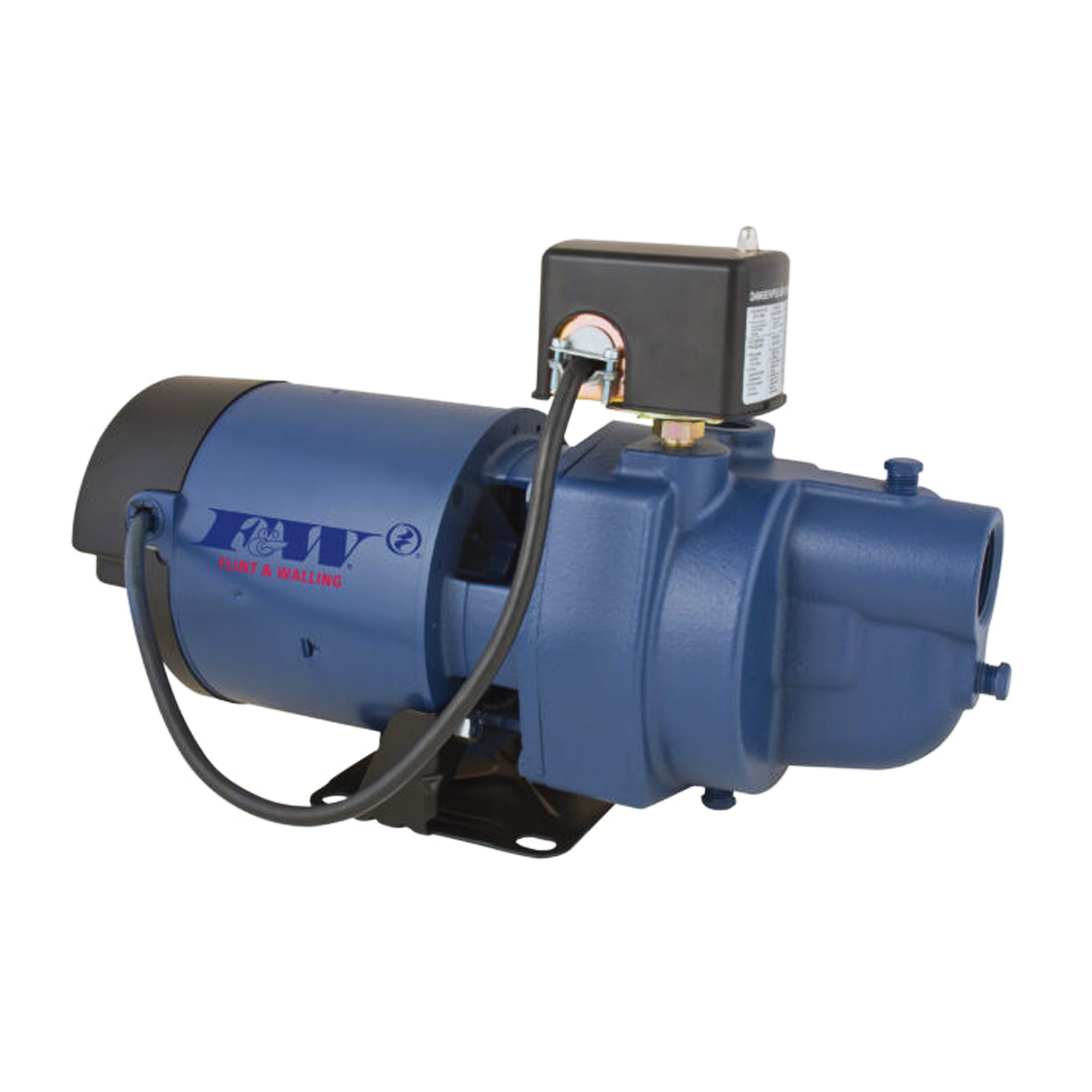

Description Product Details High tensile gray iron pump bodies Large water cavities provide fast, easy priming. Separate priming ports enable quick water fill and the fast evacuation of air. Separate 1/4″ tappings are provided for the convenient mounting of pressure/vacuum gauges and the pressure switch, and for pump draining. Buna-n Square cut ring Reusable provides a positive seal between the pump case and motor bracket. Molded diffusers Corrosion and abrasion resistant, provide precision alignment with the impeller for maximum performance. The snap- in diffuser design uses no bolts and is held in place by compression. Impellers – Precision balanced, these impellers are ultra-smooth for high efficiency. 1/3 through 1 HP CPJ, CPH, and EK models feature molded thermoplastic impellers. 1-1/2 HP CPJ models feature brass impellers. Pipe plugs and priming plugs Coated with a non-hardening, non-toxic, non-corrosive material which allows for easy removal even after the pump has been in service for years. Standard shaft seal Silicon carbide face is self-adjusting throughout the seal life. One size fits all models. CPH and EK Patented uni-frame motor bracket Unique to the water systems industry-designed to accept any NEMA J motor if motor replacement is ever necessary. Automatic overload Senses both start and run winding heat to ensure complete winding protection. CPJ models Feature NEMA J motors. All motors are dual voltage, capacitor start with automatic thermal overload protection.   Pump Performance Model HP Suction Lift. Ft Discharge Pressures (PSI)  Shut Off Pressure @ o Lift (PSI) Suction & Discharge Pressure Switch Setting – PSI Pump Shipping Weight 20 30 40 50 CAPACITY – U.S. GALLONS PER MINUTE  EK07S 3/4 5 15.5 15.0 10.0 5.8 65 1-1/4″ x 3/4″ 30-50 41 15 11.9 11.7 9.1 3.8 25 6.0 5.8 5.2 2.0
